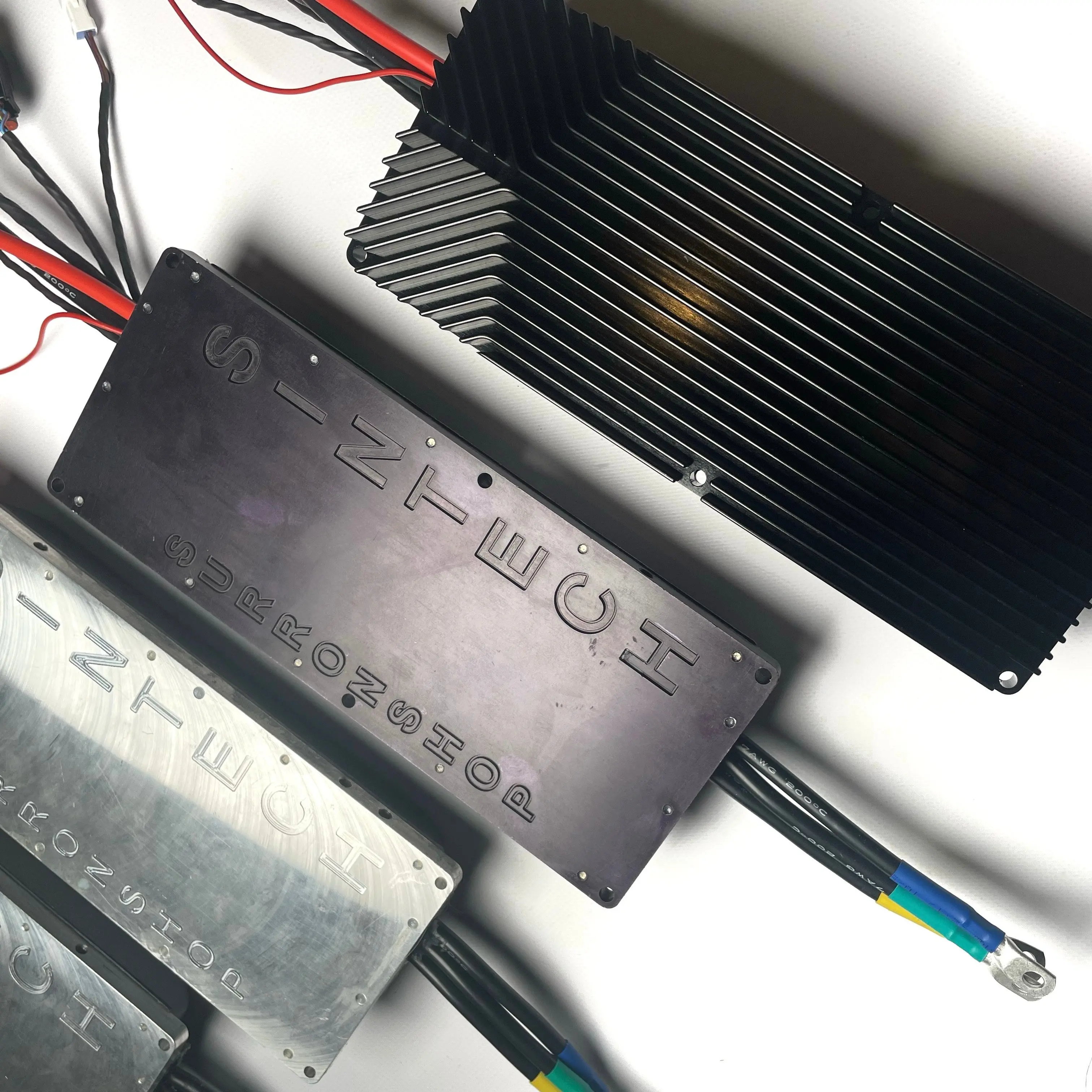

SinTech 25kw Controller
Sintech controller - first controller in the market originally designed for SurRon
On the stock Sur-Ron // Segway battery SinTech controller gives additional ~2000watts or +20-30% acceleration boost as well as top speed/range improvements and features such as reverse gear, powerful regenerative braking and up to 3 customizable power profiles. As soon as upgraded battery is on-board - SinTech brings perfomance to new level. It is capable to provide up to 30kw of power output ( 5 times power increase compared to stock bike )

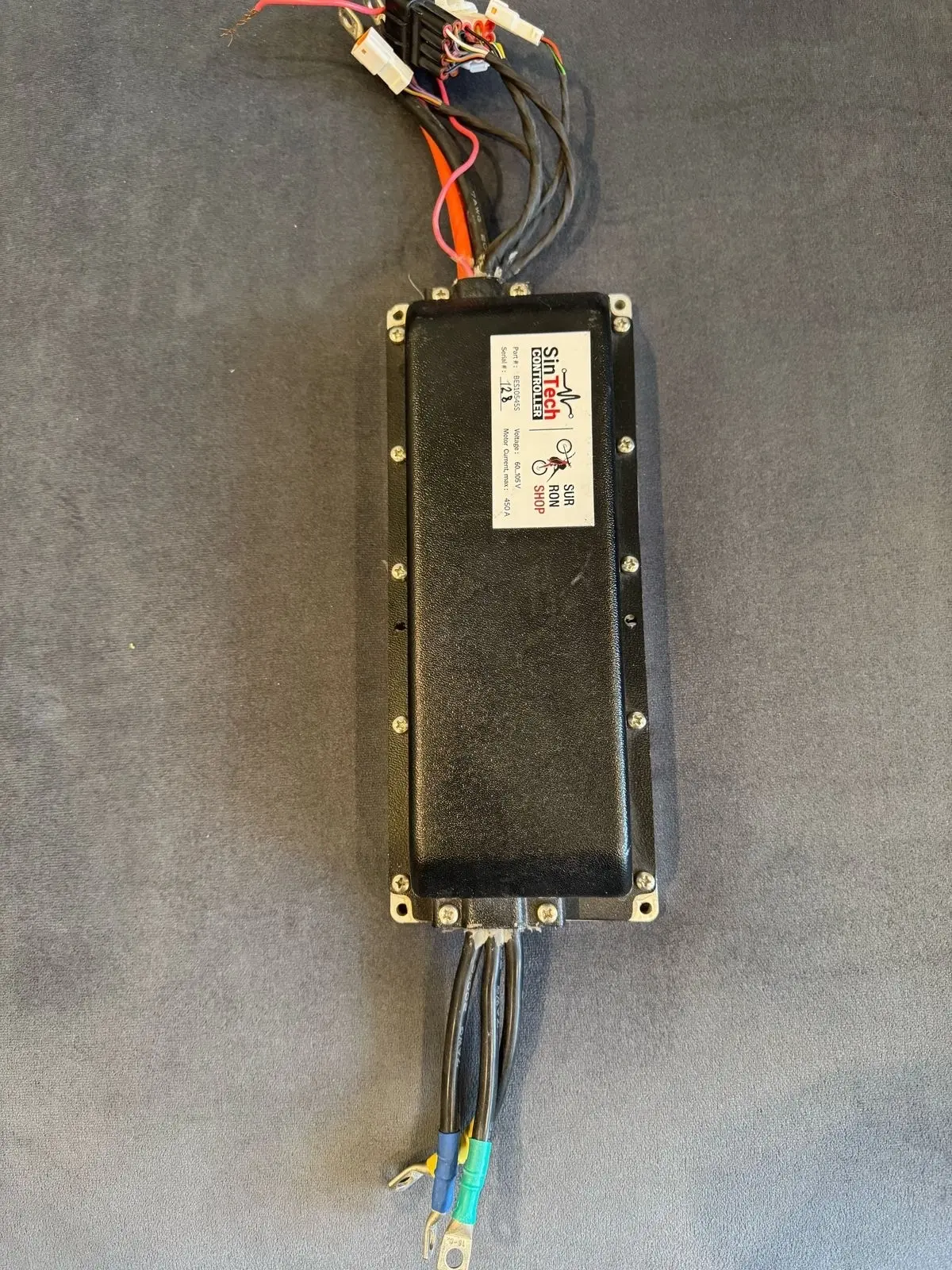

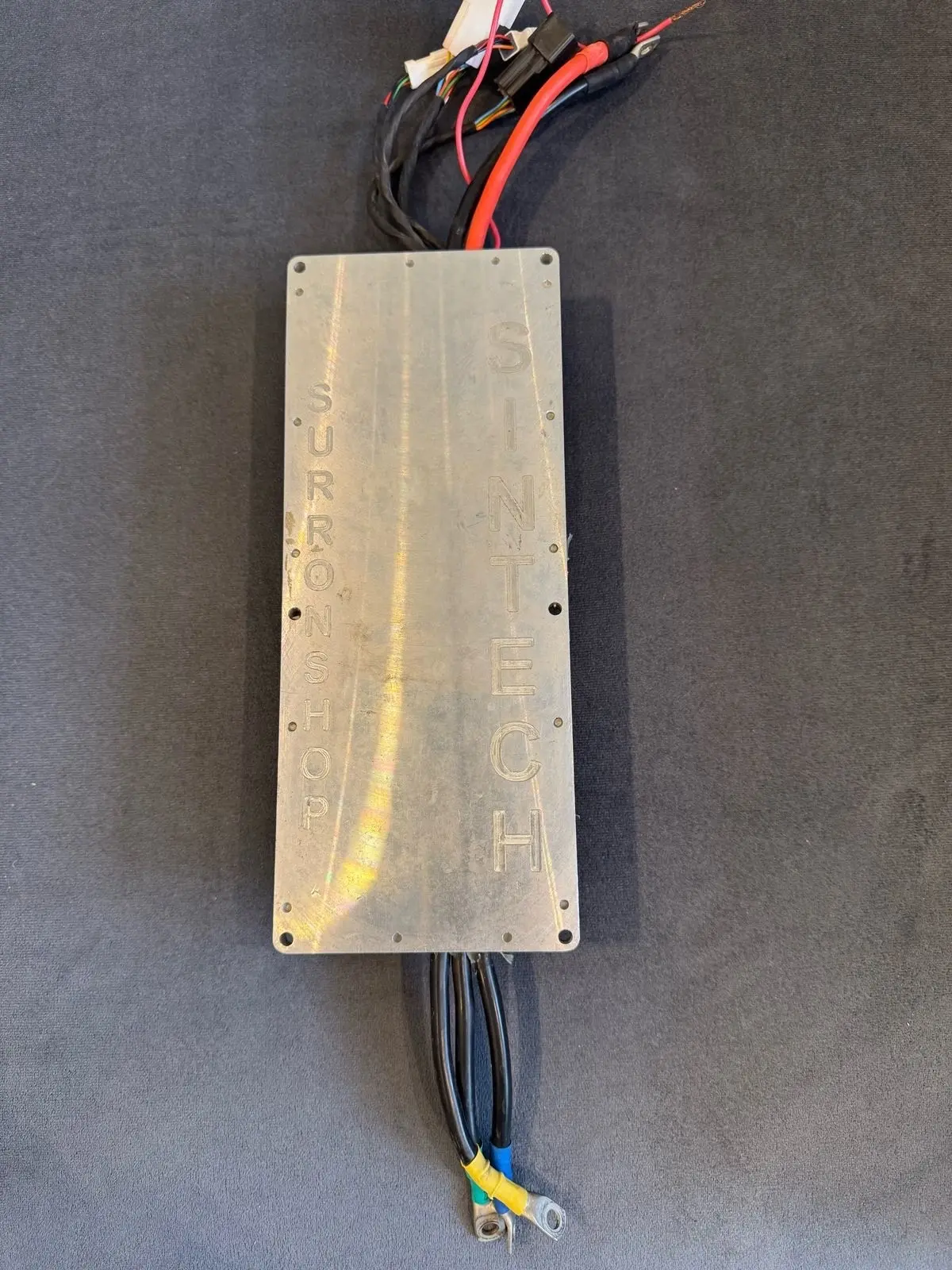

Attention - used controller now available in models selection are controllers removed from project and customer's bikes. They passed our inspection on test equipment. You get same functionality as brand new for the better price since it is no longer brand new and without warranty ( controller's kit contain brand new hardware package )
Attention - Talaria MX3/MX4 demo controller is one of the newest Sintech controllers we designed for Talaria. Demo controller we put on sale with discount was fitted on our test bike for demonstration purposes - it has 100 miles ( 150 km ) and still looks brand new with some installation signs

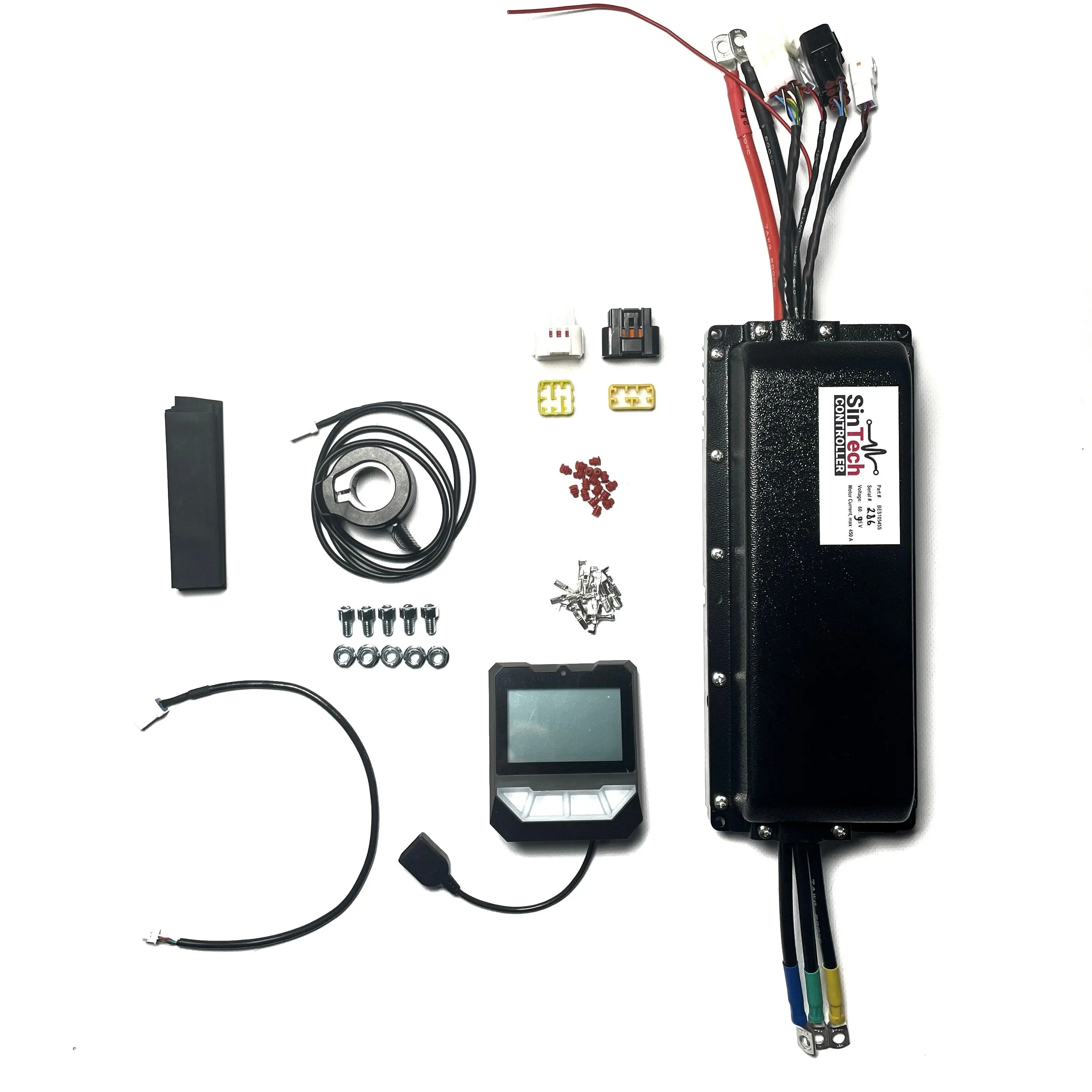

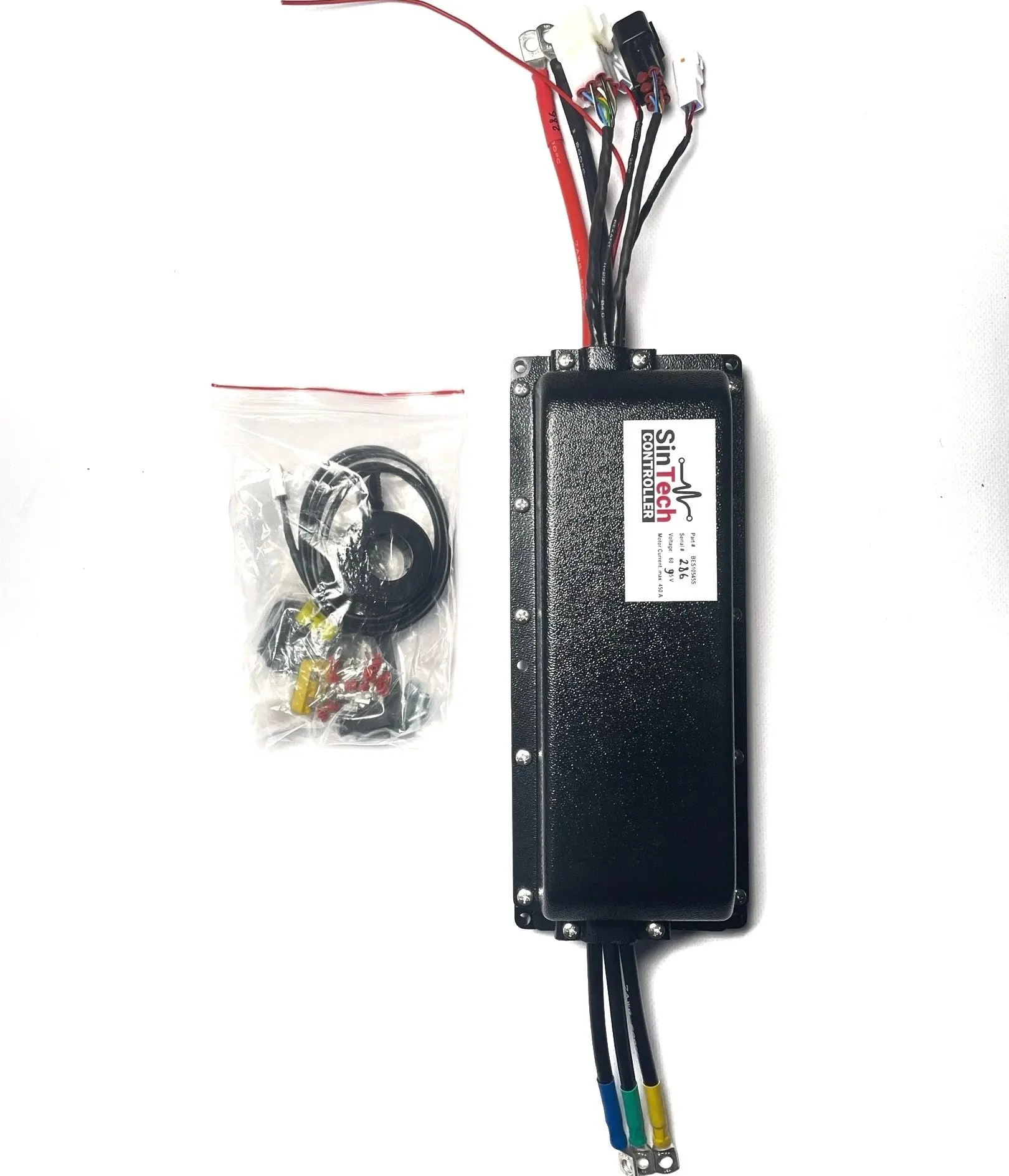

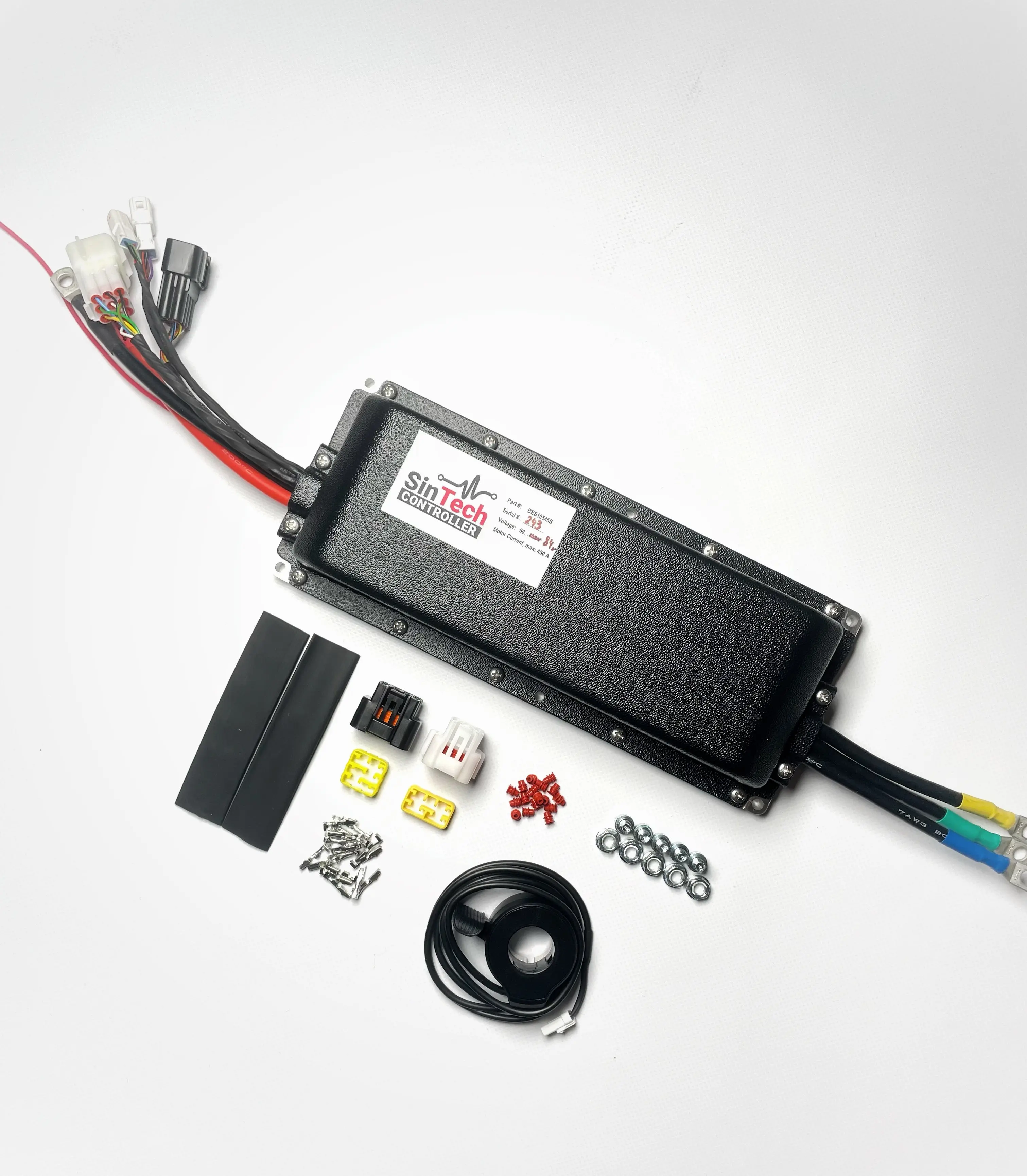

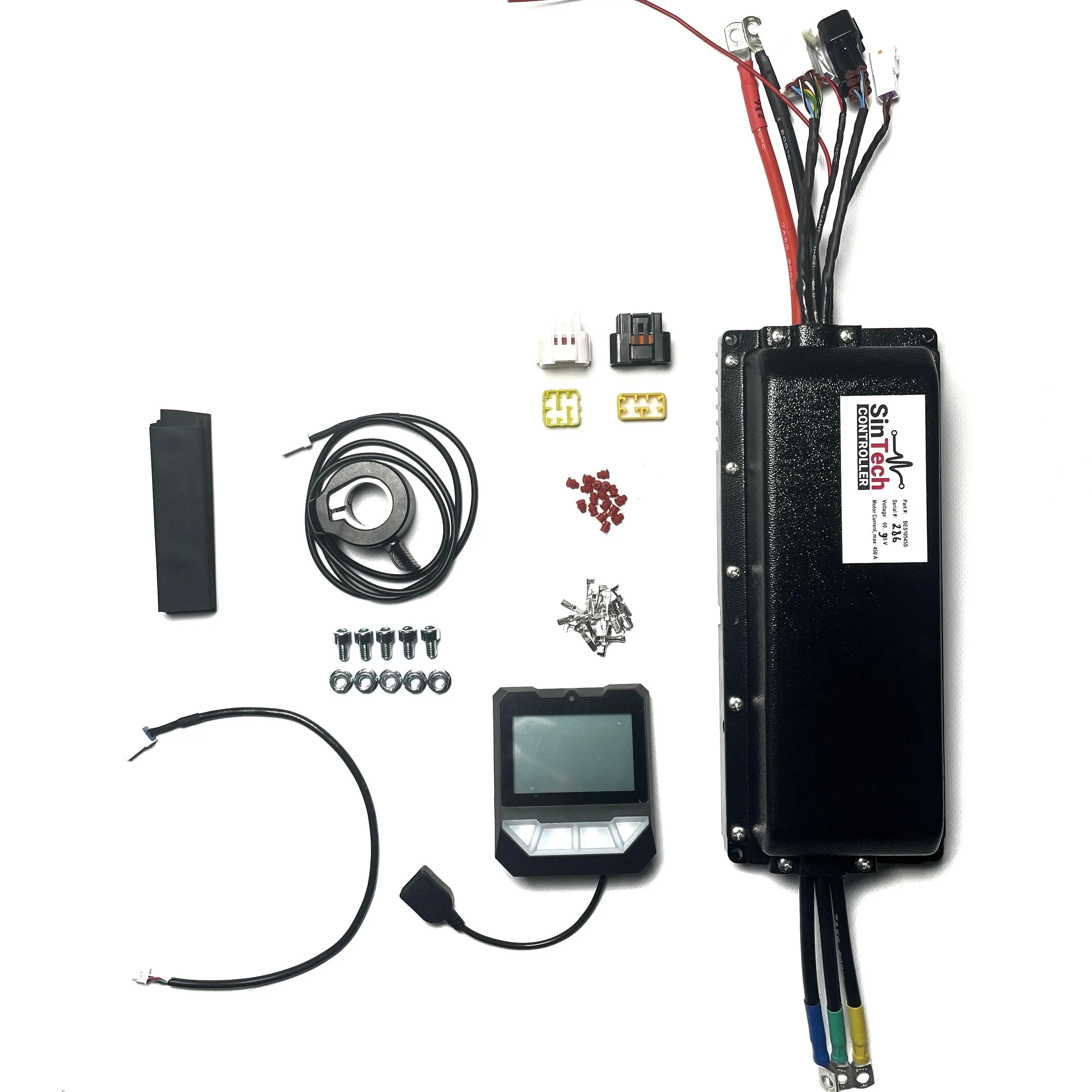

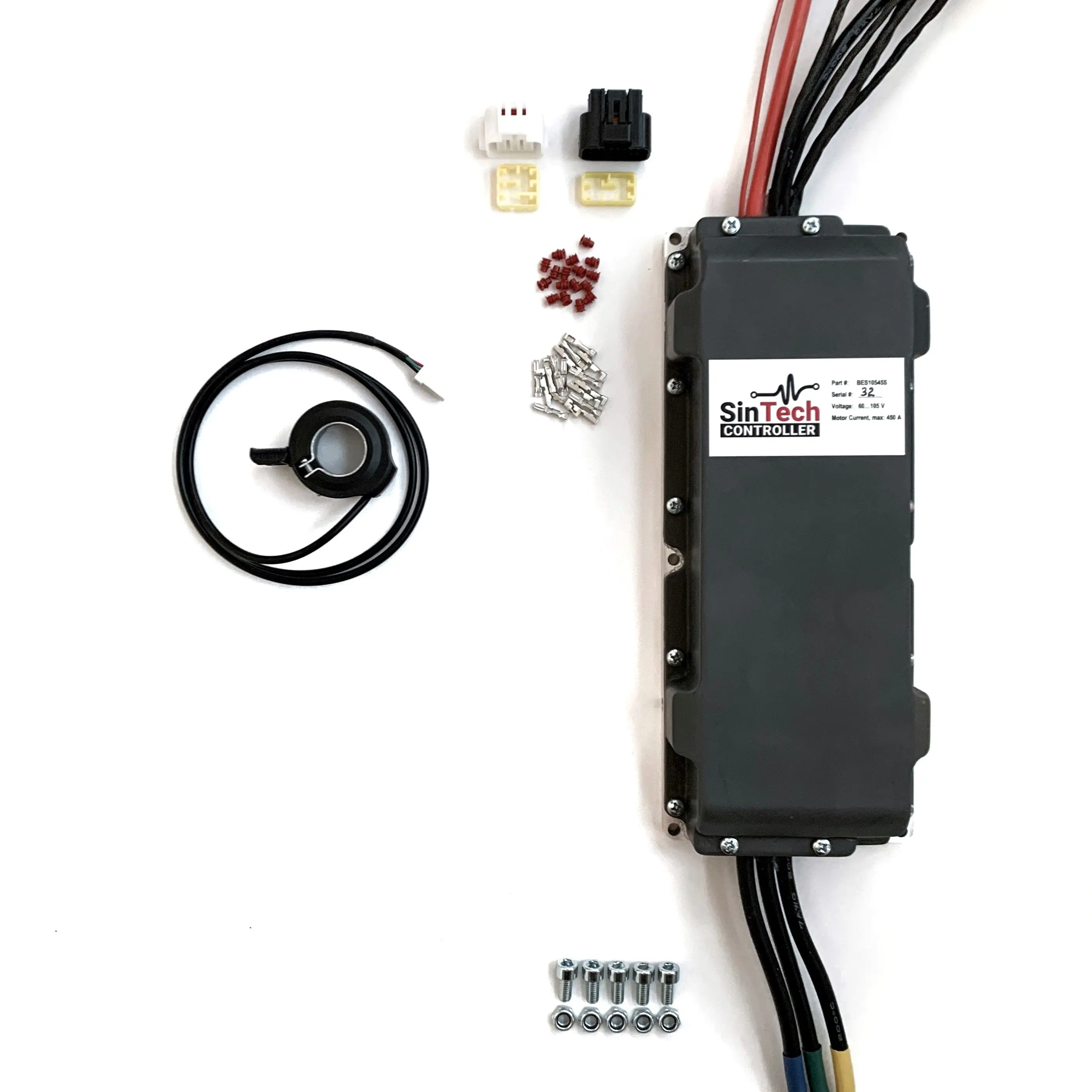

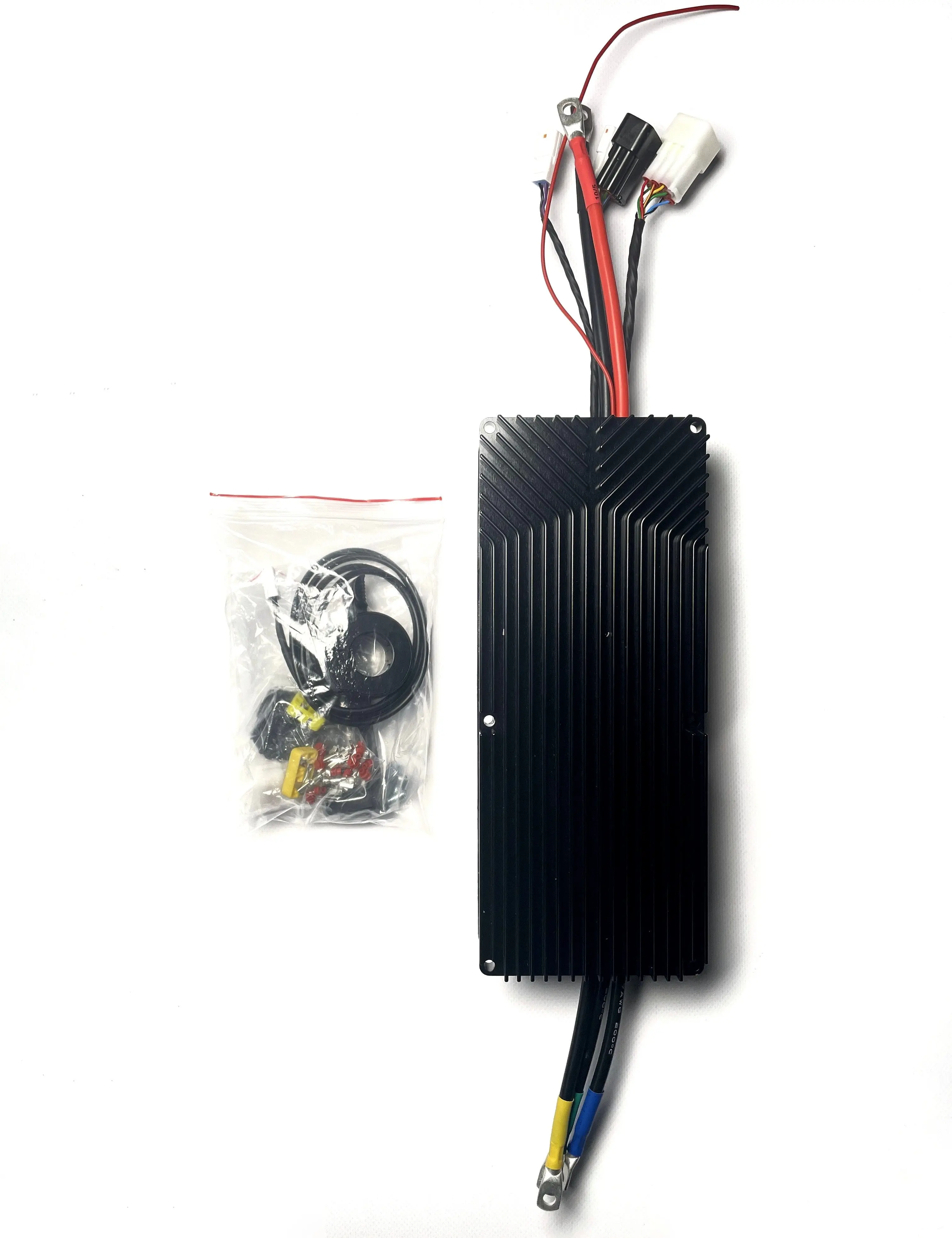

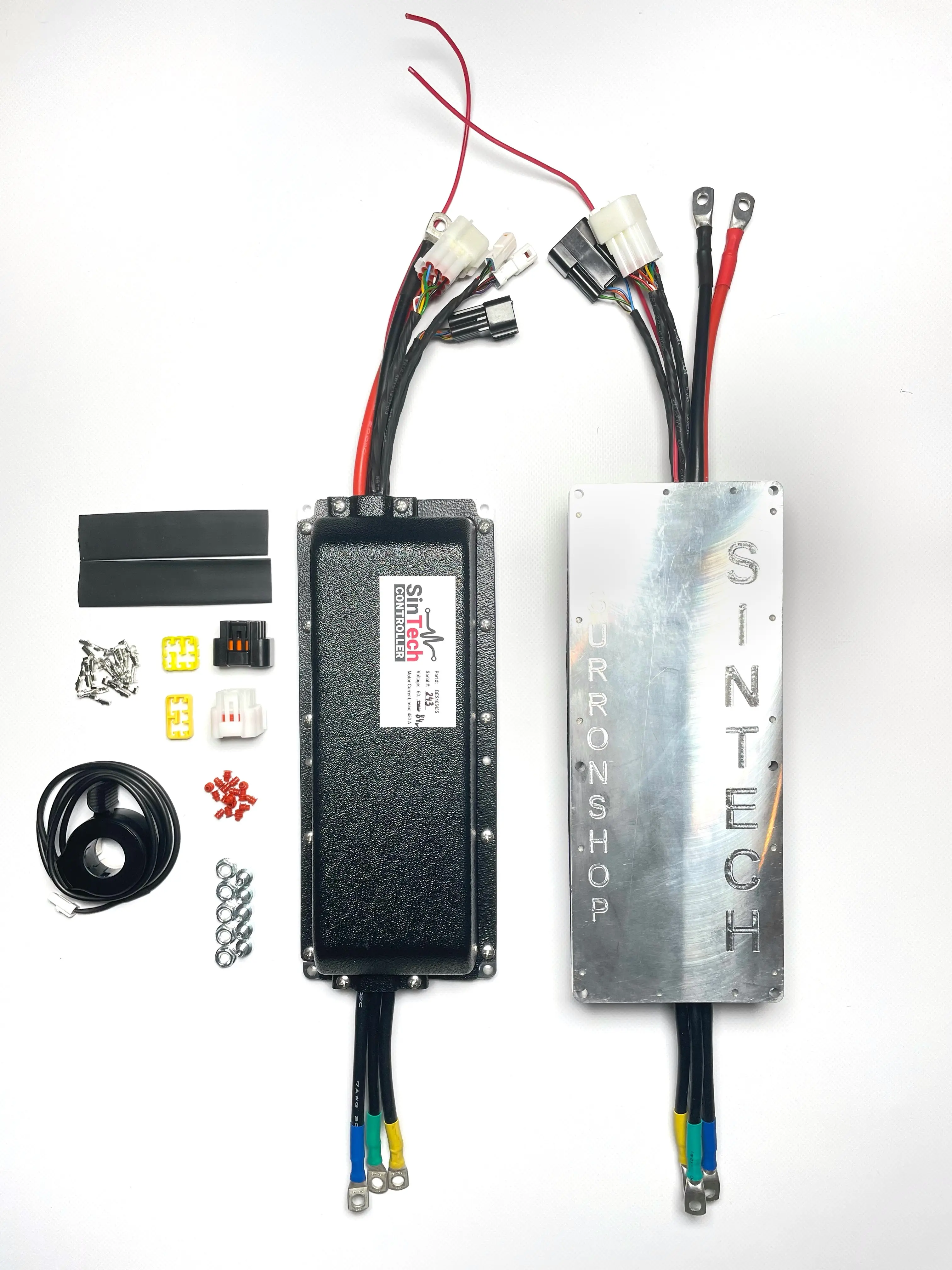

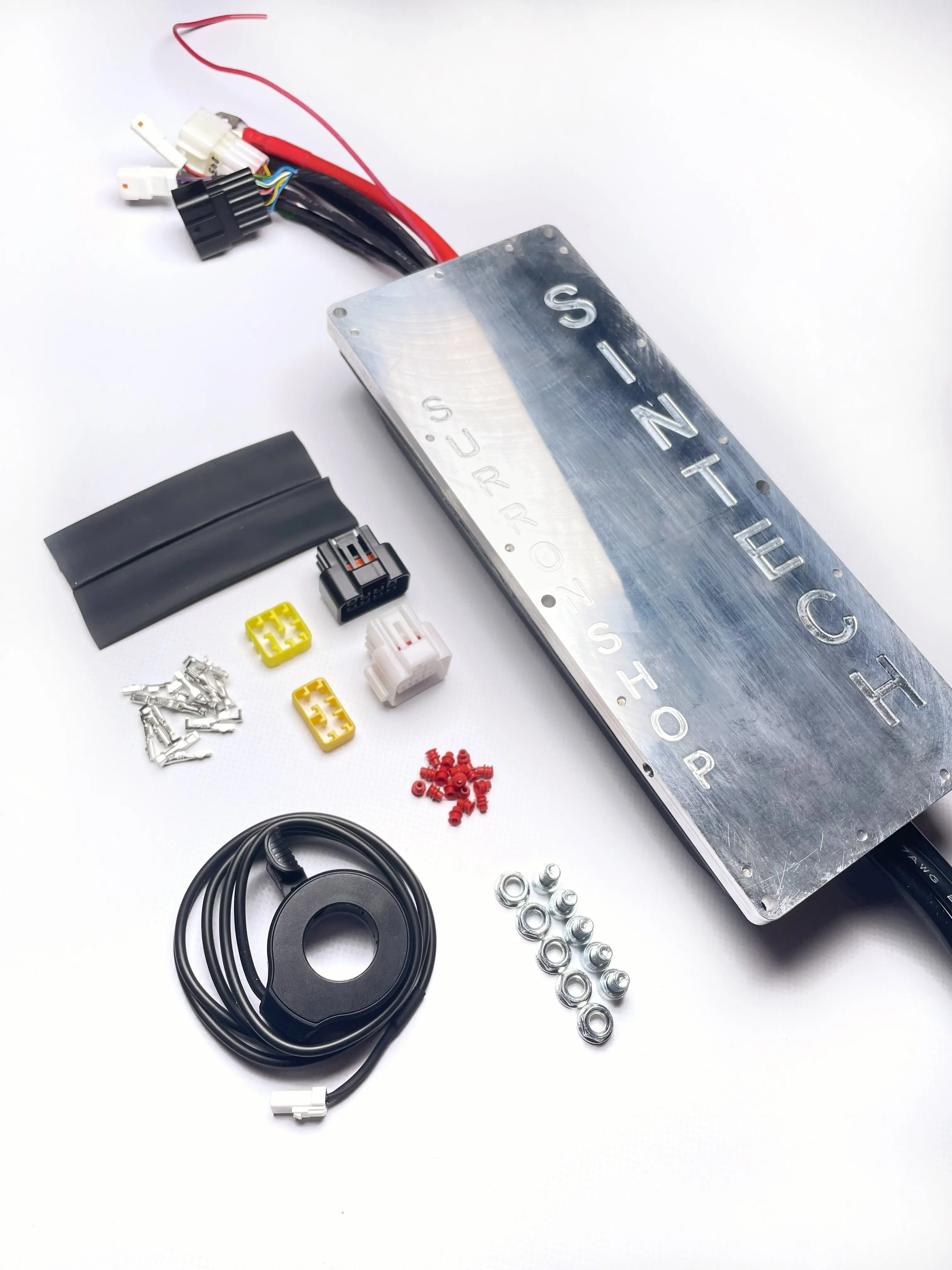

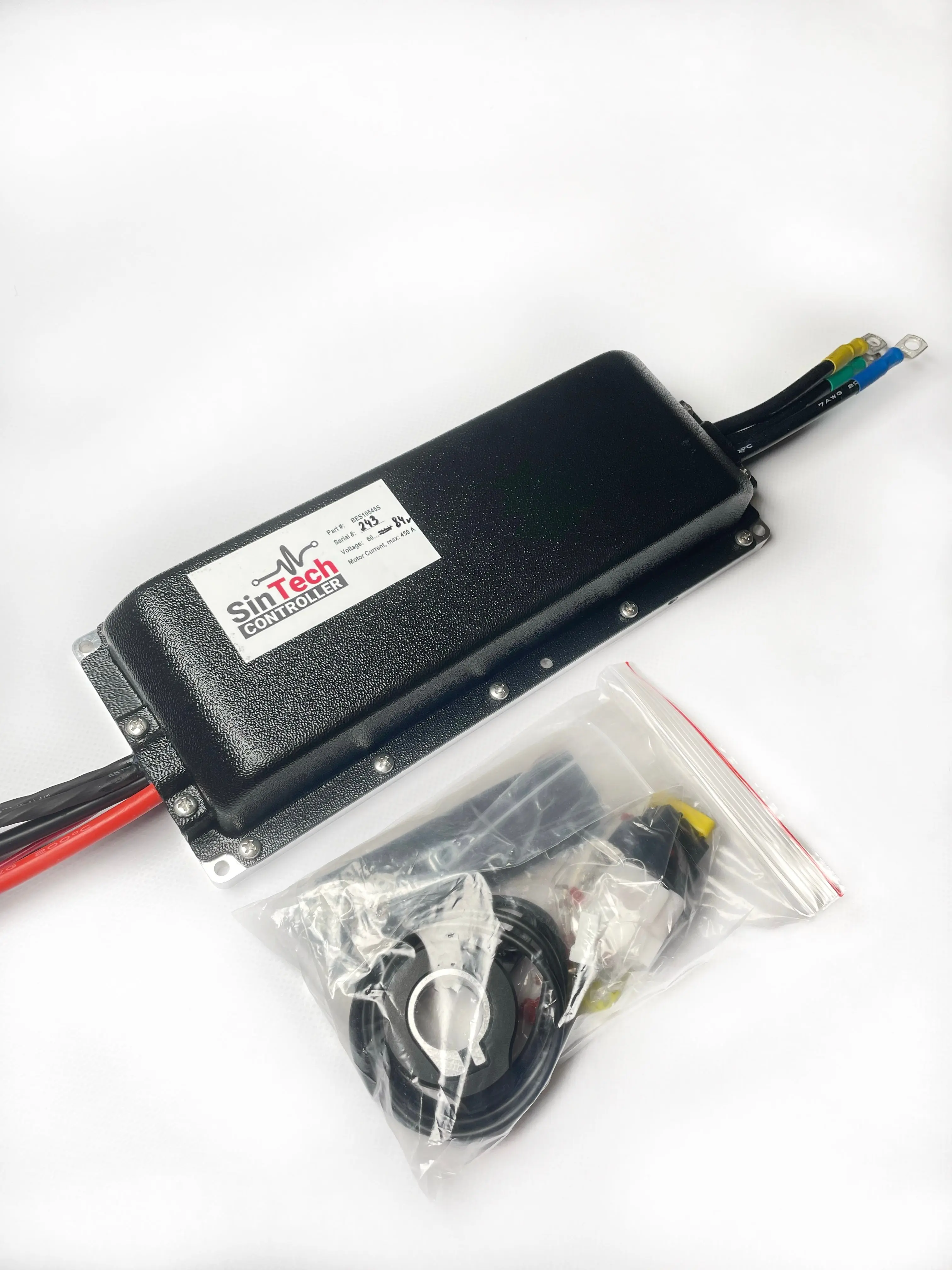

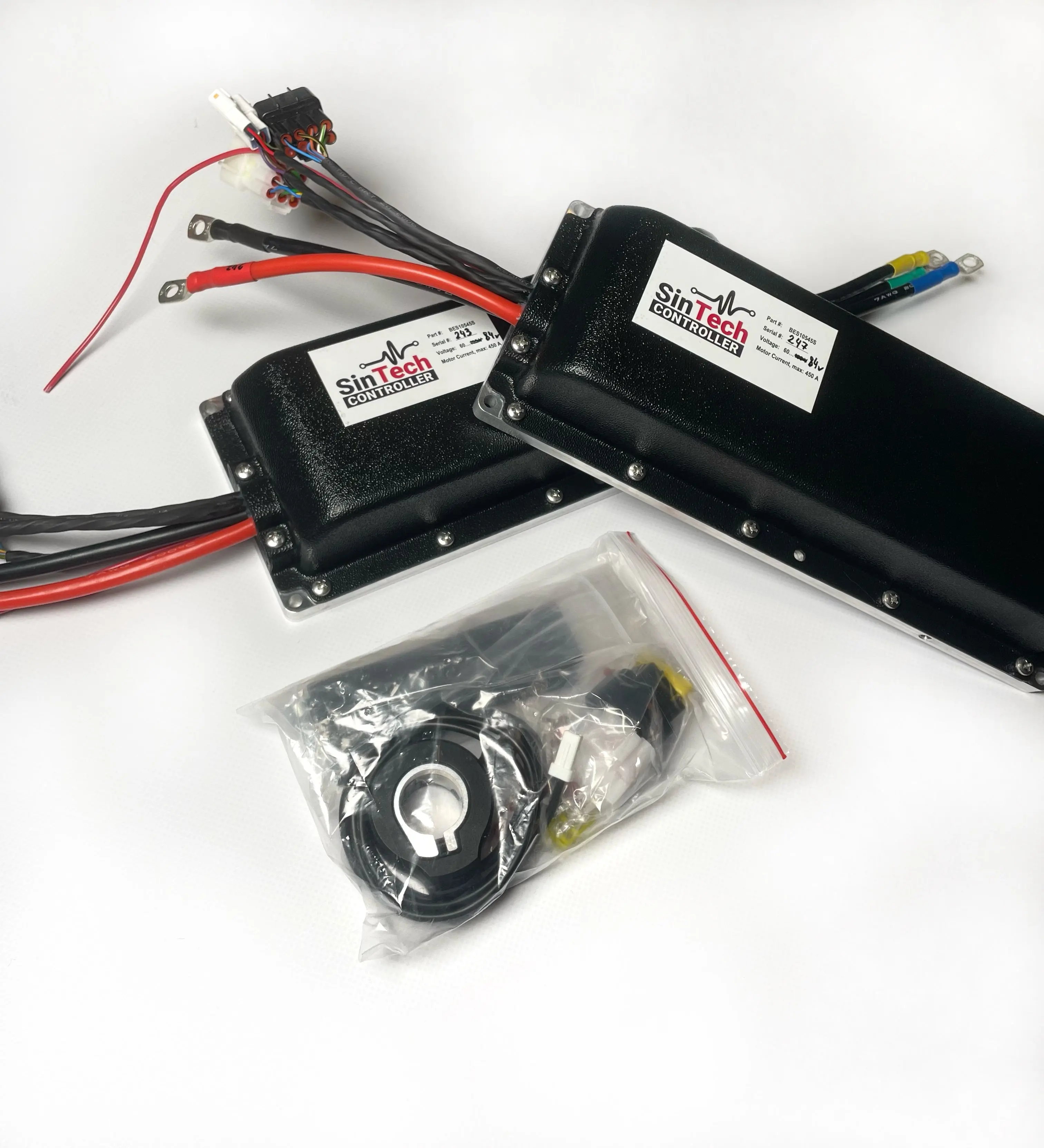

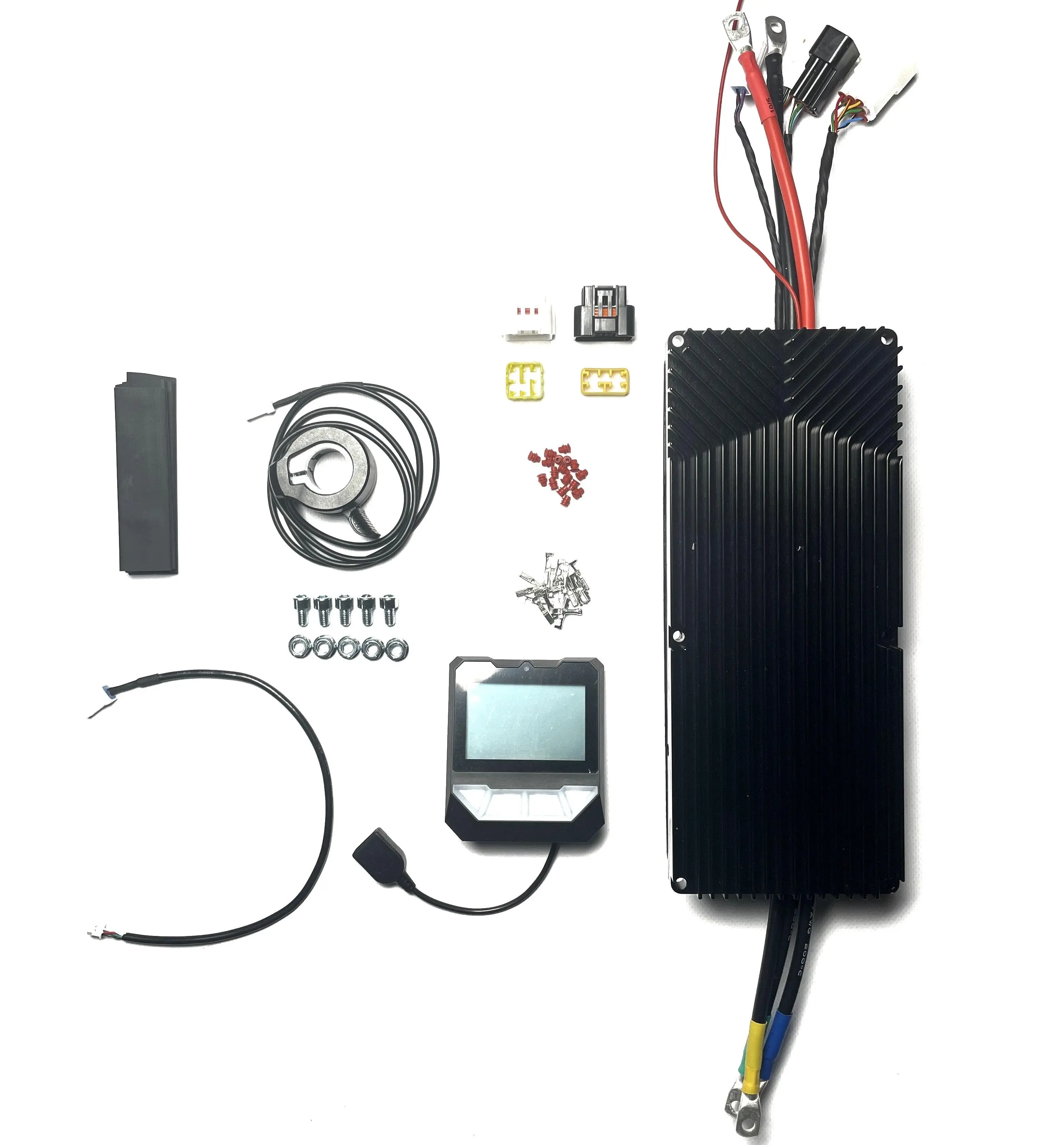

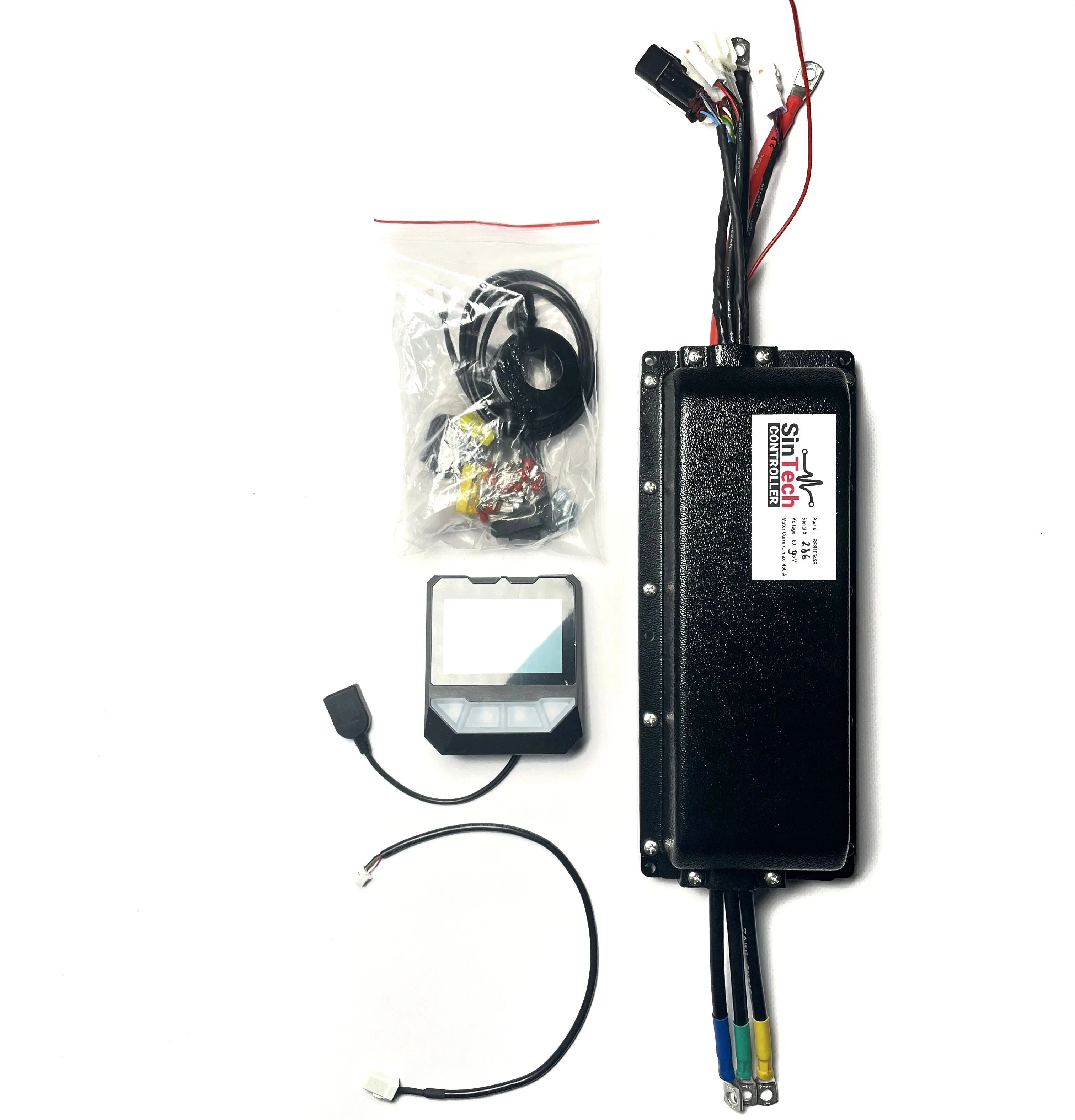

You get everithing needed out of the box
Controller upgrade kit comes with step by step installation & setup instructions and Sur Ron connectors are preinstalled to simplify installation process.
Features:
- Cheapest power, top speed and range upgrade
- Allows full customization by user. Tune power profiles manually or try recommended preset!
- Plug n Play kit, you can install it yourself!
- User-friendly smartphone app & computer software
- Powerful regen braking can be binded to brake sensors. Use only front brake to lock both wheels!
- Activate reverse gear to easily get yourself out of the tight spot!
- Push the limits of regen braking: highest rate can lock the wheel at speed!
- Learn more about your bike: track motor/controller temperature, amps and power in real time!
- Gain full control: adjust throttle and braking curve, set temperature limits and much more!
- Manually adjust speed recognition to be as accurate as GPS!
- Compatible with stock bike display or dash panel to show speed (display is not included in controller kit)
- Compatible with all bike sensors: brake, kickstand, tilt & fall
- Capable of 3x more power with upgraded battery (more than stock motor can handle)
- Comes with free technical support from SurRonshop founder. Initial remote tune is a free service!
- Comes with phase wires hardware (bolts, nuts, heat shrink) and a regenerative braking throttle
- Comes with 1 year warranty*
*SinTech controller comes with 1-year warranty: in case of a failure where power board inspection shows no signs of controller abuse, customer will receive a controller replacement/repair service & one-way shipping for free.
Link to video review & feedback from customer
Links for users:
1) Controller installation instructions (photo)
2) Controller installation instructions (video)
3) Computer software, connection schematics
4) Controller step-by-step setup instructions
Warning! In case you run a discharge-bypassed battery management system, the RED precharge control wire of SinTech controller has to be connected into the Sur-Ron circuit breaker according to connection schematics.
Technical specifications:
-
Max power: 25000w
-
Nominal power: 17000w
-
Voltage range: 60-90v (For higher voltage builds add order comment)
-
Max battery current: 300a
-
Max phase current: 500a
-
Working temperature: -20+45 Celsius
-
Efficiency: 95-97%
-
Digital outputs: 3
-
Analog outputs: 2
-
Position sensor interfaces: SSI. UVW, AB
-
Communication interfaces: RS232, CAN
-
Supported motors: PMSM, ACIM, DC, DC with ENCODER
-
Control modes: FOC, BLDC, Sensorless, FOC
-
Protection functions: phase current, supply voltage, overheating of the power unit, overheating of the main board, phase failure
